Ultrasonic Flow Meter

Information:

Ultrasonic flowmeters are based on Transit Time principle, in which the velocity is of the

flowing media (liquid) is determined by the travel time of ultrasonic waves, between trans

receivers. Based on this velocity value, the flow rate is determined.

There are two types of sensor available, Clamp on and Insertion type.

Enclosure: ABS/Die cast Aluminum

Display: 2 x16 character LCD Display

Supply: 230 V AC/24 V DC

Output: 4-20 mA, RS 485

Accuracy:+/- 1% Of Reading @>0.5 M/Sec

Water & waste water Pharma/Chemical/Fertilizers/Power/Petrochemical/Refinery/Food & Beverage

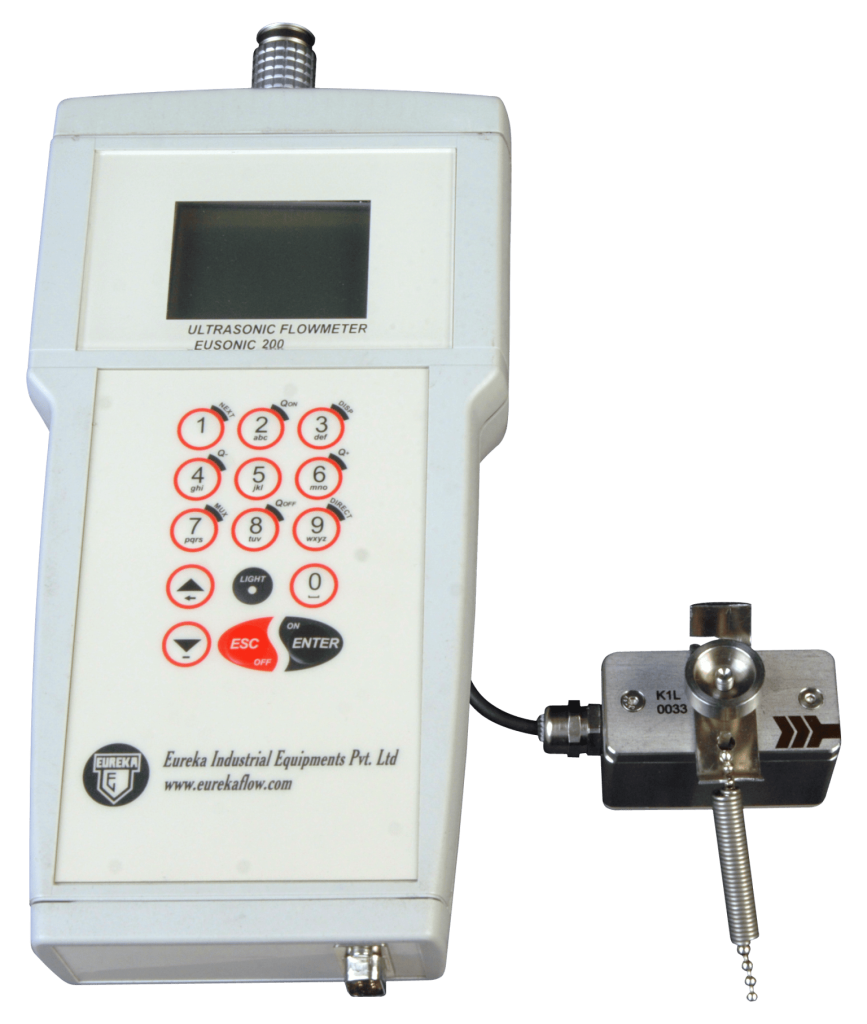

Portable Clamp-On EUSONIC 200

Sensor: Ultrasonic Clamp-on

MOC: ABS

Pipe size: DN 25 to 6000 mm

Transmitter: Portable

Enclosure: ABS/Die cast Aluminum

Display: 2 x16 character LCD Display

There are two types of sensor available, Clamp on and Insertion type.

Sensor: Ultrasonic Clamp-on

MOC: ABS

Pipe size: DN 25 to 6000 mm

Transmitter: Portable

Enclosure: ABS/Die cast Aluminum

Display: 2 x16 character LCD Display

Water & waste water Pharma/Chemical/Fertilizers/Power/Petrochemical/Refinery/Food & Beverage

Supply: 230 V AC/24 V DC

Output: 4-20 mA, RS 485

Accuracy: :+/- 1% Of Reading @>0.5 M/Sec
